# What is on the board

A reference to the board's main parts, clocks, connectors and supply rails, for
anyone wiring to the board, choosing a frequency range, or constraining a pin.
Everything is read off the vendor schematic in
[`docs/vendor/`](vendor/7020_936x_SDR-schematic.pdf), with the sheet number so
you can check it, and cross-checked against what a running board reports where
possible.

Where a row says *inferred*, the schematic shows the pins and the connections
but not a part number, and the row says what the inference rests on. What
cannot be determined is listed under
[What this page cannot tell you](#what-this-page-cannot-tell-you).

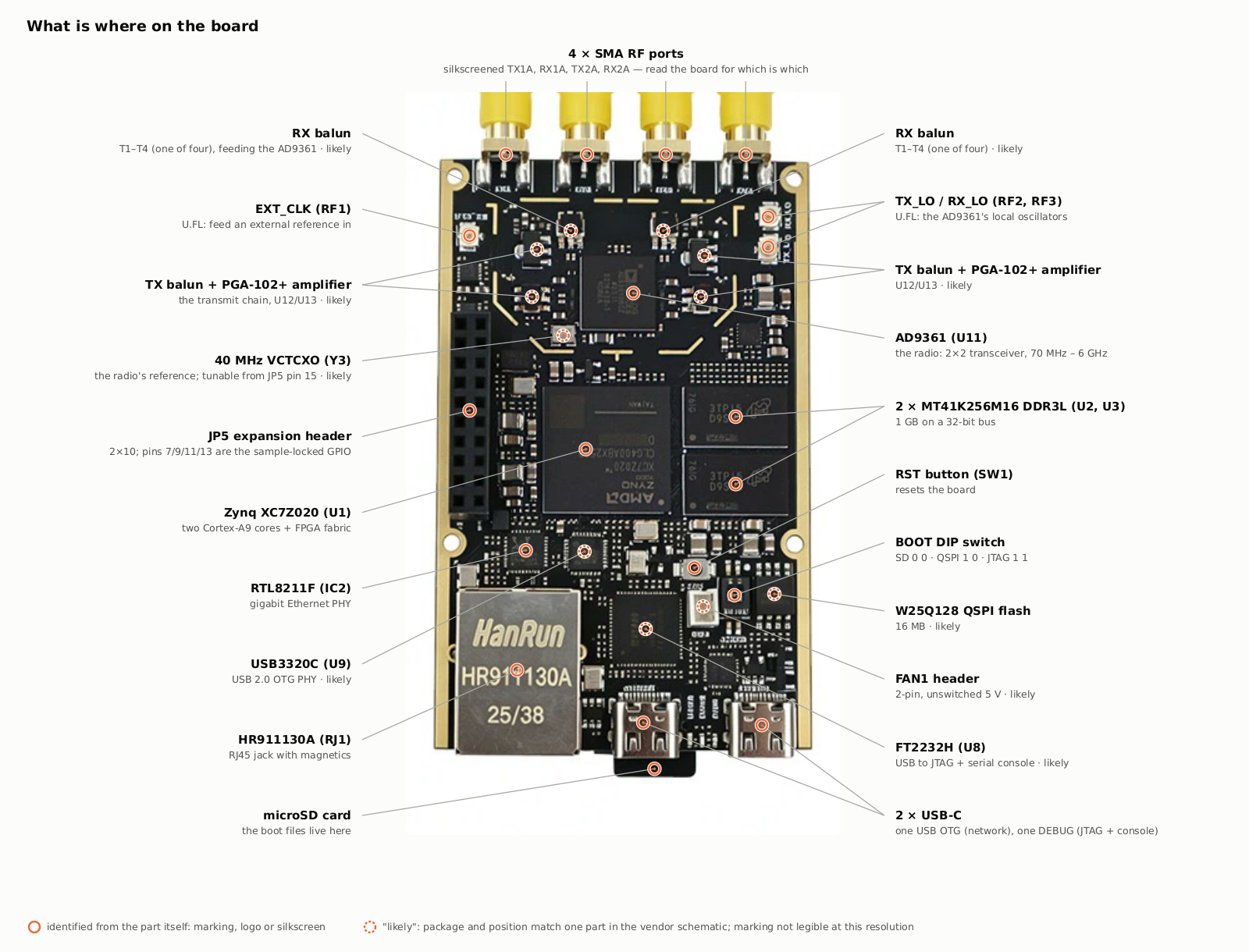

<img src="img/board-map.png" alt="The board photographed from above, with 22 labels: the four SMA ports, EXT_CLK, TX_LO and RX_LO, the AD9361, the Zynq XC7Z020, two MT41K256M16 DDR3L chips, the RTL8211F Ethernet PHY, the HR911130A RJ45 jack, the JP5 header, the BOOT DIP switch, the reset button, the microSD card and both USB-C sockets. Parts inferred from package and position rather than a legible marking have dashed rings and say likely: the four RF baluns, the two PGA-102+ amplifiers, the 40 MHz VCTCXO, the USB3320C, the FT2232H, the W25Q128 flash and the FAN1 header." width="900">

## The main devices

On the picture above, a solid ring means the part was identified from the part
itself: a legible marking, a logo, or silkscreen. A dashed ring and the word
"likely" mean the marking is not legible in the photo, but the package and
position fit exactly one part in the schematic. The two SOT-89 parts beside the
outer SMA ports are one example: they are the only SOT-89s on the RF side, and
the PGA-102+ is a SOT-89.

| Ref | Part | What it does | Sheet | Corroborated by | Datasheet |
|---|---|---|---|---|---|
| `U1` | Xilinx **XC7Z020-CLG400** | Zynq-7000: two Cortex-A9 cores plus Artix-7 fabric | 1, 2, 3, 5, 6 | legible on the package | [DS187](https://docs.amd.com/v/u/en-US/ds187-XC7Z010-XC7Z020-Data-Sheet) · [DS190 overview](https://docs.amd.com/v/u/en-US/ds190-Zynq-7000-Overview) |
| `U2` `U3` | Micron **MT41K256M16TW-107IT:P** | DDR3L, 4 Gbit ×16 each, so **1 GB** across a 32-bit bus | 3 | Micron logo and FBGA code `D9SHD` legible; board reports `MemTotal: 1027848 kB` | [Micron part page](https://www.micron.com/products/memory/dram-components/ddr3-sdram/part-catalog/part-detail/mt41k256m16tw-107-it-p) |
| `U11` | Analog Devices **AD9361** | the radio: 2×2 transceiver, 70 MHz – 6 GHz | 10, 11, 12 | ADI logo legible; `ad9361-phy` in IIO | [AD9361](https://www.analog.com/media/en/technical-documentation/data-sheets/ad9361.pdf) |
| `U12` `U13` | Mini-Circuits **PGA-102+** | transmit power amplifier, one per channel | 12 | SOT-89 packages beside the outer SMA ports; self-test measures ~15.7 dB of gain at 900 MHz | [PGA-102+](https://www.minicircuits.com/pdfs/PGA-102+.pdf) |
| `T1`–`T4` | RF baluns (the schematic gives no part number) | single-ended SMA ↔ the AD9361's differential RF pins, one per port. On transmit the balun is **before** the amplifier: `AD9361 TX1A_P/N → T1 → TX1A_I → U12 → TX1A_O → SMA` | 12 | four square 6-pad parts around the AD9361; pads labelled `PRIMARY`, `PRIMARY_DOT`, `SECONDARY_DOT`, `NOT_USED`, `GND`, a transformer footprint with polarity dots | — |
| `U8` | FTDI **FT2232HL** | USB to JTAG *and* serial console, on one socket | 8 | two `ttyUSB` ports enumerate together | [FT2232H](https://ftdichip.com/wp-content/uploads/2024/09/DS_FT2232H.pdf) |
| `U9` | Microchip **USB3320C-EZK** | USB 2.0 OTG PHY | 9 | the `usb0` network interface | [USB3320](https://ww1.microchip.com/downloads/en/DeviceDoc/00001792E.pdf) |
| `IC2` | Realtek **RTL8211F-CG** | gigabit Ethernet PHY | 4 | Realtek logo legible; `eth0` | [Realtek product page](https://www.realtek.com/Product/Index?id=3975&cate_id=786) |
| `RJ1` | HanRun **HR911130A** | RJ45 with integrated magnetics | 4 | legible on the part | [LCSC page, with datasheet](https://lcsc.com/product-detail/Ethernet-Connectors-Modular-Connectors-RJ45-RJ11_HANRUN-Zhongshan-HanRun-Elec-HR911130A_C54408.html) |
| — | Winbond **W25Q128JVSIQ** | 16 MB QSPI flash: FSBL, U-Boot, its environment, a small Linux image | 2 | four MTD partitions totalling 16 MB | [W25Q128JV](https://www.winbond.com/resource-files/w25q128jv%20revf%2003272018%20plus.pdf) |
| `IC1` | onsemi **MAX809TTRG** | reset supervisor, behind the `RST` button (`SW1`) | 2 | | [MAX809](https://www.onsemi.com/pdf/datasheet/max809s-d.pdf) |
| `IC7` | TI **TXS02612RTWR** | SD-card level shifter and 2-port expander | 7 | | [TXS02612](https://www.ti.com/lit/ds/symlink/txs02612.pdf) |
| `IC4` | serial EEPROM *(inferred)* | holds the FT2232's USB descriptors; the schematic shows `EEDAT`, `DI`, `DO` against the FT2232 | 8 | | — |
| `K1` `Q3` | Panasonic **AQY221N2VW** solid-state relay + AOS **AO3400A** MOSFET | the PTT switch, brought out on JP5 pin 17 | 13 | | [AQY221N2VW](https://industry.panasonic.com/global/en/products/control/relay/photomos/number/aqy221n2vw) · [AO3400A](https://www.aosmd.com/res/datasheets/AO3400A.pdf) |

Not on the picture: the MAX809, the TXS02612, the EEPROM, the relay and the
LEDs are too small to find reliably in an 800-pixel photo. The power
regulators are not in the published schematic at all, so this page cannot name
them. For the RTL8211F the link is Realtek's product page, the official source.

### The baluns, and the one thing they decide

The AD9361's radio ports are differential pairs (`TX1A_P`/`TX1A_N`,
`RX1A_P`/`RX1A_N` and so on). An SMA connector and the coax behind it are
single-ended. `T1`–`T4` (baluns: balanced-to-unbalanced transformers) translate
between the two, one per port.

Two consequences to know before planning around the chip's datasheet:

- **The balun sets the board's usable frequency range, not the AD9361.** The
  chip covers 70 MHz – 6 GHz. A passive transformer covers whatever it was
  wound for, and outside that its loss climbs and its balance degrades. The
  schematic gives no part number, so **this page cannot tell you where the
  board's range ends**; only a measurement can. The known figure:
  [loop gain is flat to 2 dB from 200 MHz to 1 GHz](measured-performance.md),
  which is the baluns, the amplifier and the traces together.
- **Each port has its own fixed phase offset** through its own balun and
  traces. That is why two channels on one board are coherent but not
  calibrated, and why a phase measurement has to be taken with a splitter and
  matched cables before it means anything.

The AD9361 also brings out `RX1B`/`RX2B` differential pairs, which this board
does not wire to connectors; the four SMAs are the `A` ports only.

## Clocks

The 40 MHz reference is the one that matters for radio work: everything the
AD9361 does is derived from it, so its accuracy is the radio's accuracy.

| Ref | Frequency | Feeds | Sheet |
|---|---|---|---|
| `Y3` | **40 MHz** | the AD9361 reference: a **VCTCXO**, whose output goes through `R107` (33 Ω) to the AD9361's `XTALN` (ball M12). Its tuning voltage, `XTAL_VTC`, is brought out on **JP5 pin 15** | 10 |
| `Y2` | 33.333 MHz | `PS_CLK`, the Zynq processing system | 6 |
| `Y1` | 50 MHz | the PL fabric, at 1.8 V | 5 |
| `OS1` | 25 MHz | the Ethernet PHY | 4 |
| `OS2` | 24 MHz | the USB PHY | 9 |
| `X1` | crystal, with 18 pF loading caps | the FT2232HL | 8 |

## Connectors

| Ref | What it is |
|---|---|
| 4 × SMA | `TX1A`, `RX1A`, `TX2A`, `RX2A`. **Read the silkscreen** rather than counting positions |
| `RF1` | `EXT_CLK`, U.FL: **goes to the FPGA, not to the radio.** Through `R110` (marked `33R/NC`) to Zynq pin `K17`, a clock-capable fabric pin. See [locking to an external reference](#locking-the-board-to-an-external-reference) |
| `RF2` `RF3` | `TX_LO` and `RX_LO`, U.FL: the AD9361's local oscillators, brought out |
| `JP5` | the 2×10 expansion header. Pins 7/9/11/13 are `sample_gpio[3:0]`; see [the pinout](tx-gpio-bitmap.md#the-pins) |
| `JP1`–`JP4` | further headers |
| `BOOT1` | the 2-position boot switch: SD `0 0`, QSPI `1 0`, JTAG `1 1` |
| `RJ1`, 2 × USB-C, microSD, `FAN1` | network, host connections, boot media, fan |
| `RED1` `BLUE1` | the two LEDs, each through 240 Ω |

Brought-out local oscillators (`RF2`, `RF3`) are part of what you need to run
two of these boards coherently, the same problem the
[sample-locked GPIO outputs](tx-gpio-bitmap.md) address from the digital side.
`RF1` is **not** the other half of that: despite the `EXT_CLK` label it reaches
a fabric pin, not the radio. What to do instead is below.

## Locking the board to an external reference

The radio's reference is `Y3`, a 40 MHz VCTCXO whose output goes through `R107`
(33 Ω) into the AD9361's `XTALN` pin. **There is no switch.** This board has
none of the `clock_extern_en` / `clock_internal_en` GPIOs that a Rev.C ADALM-Pluto
uses to select between an internal and an external reference (they are absent
from the running device tree), and the U.FL marked `EXT_CLK` does not connect to
the AD9361.

The options, in increasing order of effort:

**The driver is already expecting an external clock.** `Y3` is an active
oscillator rather than a passive crystal, so the device tree already carries
`adi,xo-disable-use-ext-refclk-enable` with `clock-frequency = <40000000>`. A
reference substituted at 40 MHz therefore needs **no software change at all**.

**Correcting the frequency in software, with no soldering.** The driver exposes
`xo_correction`, which tells it the reference's true frequency:

```bash
# run on the board
cat /sys/bus/iio/devices/iio:device0/xo_correction_available
#   [39992000 1 40008000]     min, step, max  -> 1 Hz steps, about 0.025 ppm
cat /sys/bus/iio/devices/iio:device0/xo_correction
#   40000000
```

Measure how far `Y3` actually is from 40 MHz against a disciplined reference,
write the true value here, and every frequency the board tunes to becomes
accurate. This gives **accuracy, not stability** (the VCTCXO still wanders with
temperature), and needs no modification.

**Substituting the reference, which means soldering.** Set the external source
to exactly 40 MHz, take `Y3` out of circuit, and inject at `R107`. Two things to
respect at the `XTALN` pin: it must be **AC-coupled**, and it takes **1.3 V p-p
maximum** ([AD9361 datasheet](https://www.analog.com/media/en/technical-documentation/data-sheets/ad9361.pdf);
the phase detectors accept 10–80 MHz). A 3.3 V CMOS GPSDO output is far too hot
and wants roughly 6 dB of pad. There is a 100 nF part (`C164`) near `R107` in
the schematic, but the text extraction cannot resolve whether it is the series
coupling capacitor or `Y3`'s supply decoupling. Check the PDF or ring it out
before relying on it, and add your own DC block if in doubt.

**What `EXT_CLK` on `RF1` is actually for.** It reaches Zynq pin `K17` through
`R110`, which the schematic marks `33R/NC`, so it may not be fitted. `K17` is
**not constrained in the stock design**, so out of the box a clock fed in there
does nothing at all. It is a way to get a disciplined clock into *your own
fabric logic*, which is a different job from disciplining the radio.

## Supply rails

From sheet 1: **VCC5V**, **VCC3V3**, **VCC1V8**, **VCC1V35** (the DDR3L bank)
and **1V3_A** (the AD9361's analogue supply). Which rail feeds which FPGA bank
matters when you constrain a pin; the evidence is under
[the pins](tx-gpio-bitmap.md#the-pins). Bank 13, where the sample-locked GPIO
pins live, runs from VCC3V3.

## What this page cannot tell you

- **Which physical SMA is which.** The schematic gives the net names and the
  photo shows four identical connectors. The mapping between them lives in the
  PCB layout, which this repo does not have. The board is silkscreened; read it.
- **Which USB-C socket is which.** Same reason. Both are labelled on the board.
  Use **both**, with one on a mains charger: on laptop bus power alone this board
  browns out under sustained use and takes the whole USB controller down with
  it; see [troubleshooting](troubleshooting.md).
- **Whether `RF1`/`RF2`/`RF3` are fitted on your board.** The schematic shows
  them, and `RF1` has a `33R/NC` option on its feed, which is the kind of thing
  that differs between production runs. Look before you plan around them.
- **Component values for most passives.** They are in the schematic; this page
  covers the devices you would want to look up a datasheet for.

Regenerate the picture with
[`docs/img/make_board_map_svg.py`](img/make_board_map_svg.py).
